Forged Brass NRV Horizontal
Salient Features
- Screwed Female Ends to IS 554/BS 21/ISO 7.
- Screwed In Bonnet, Integral Seat.
- Permits Flow In One Direction & Shuts Automatically If The Flow Reverses.
- Metal Disc Is Mushroom Shaped With Spherical
Seating Surface. - Meant For Horizontal Lines Only.
- Disc Is Guided In Body As Well As In Bonnet.
- Test Pressure (Hydrostatic)
Shell: 35 Kg/Cm2g (500 psig) - Seat: 20 Kg/Cm2g (285 psig)
- Maximum Working Temperature: 80 C
Suitable For :
Steam
Water
Oil
Air
Gases

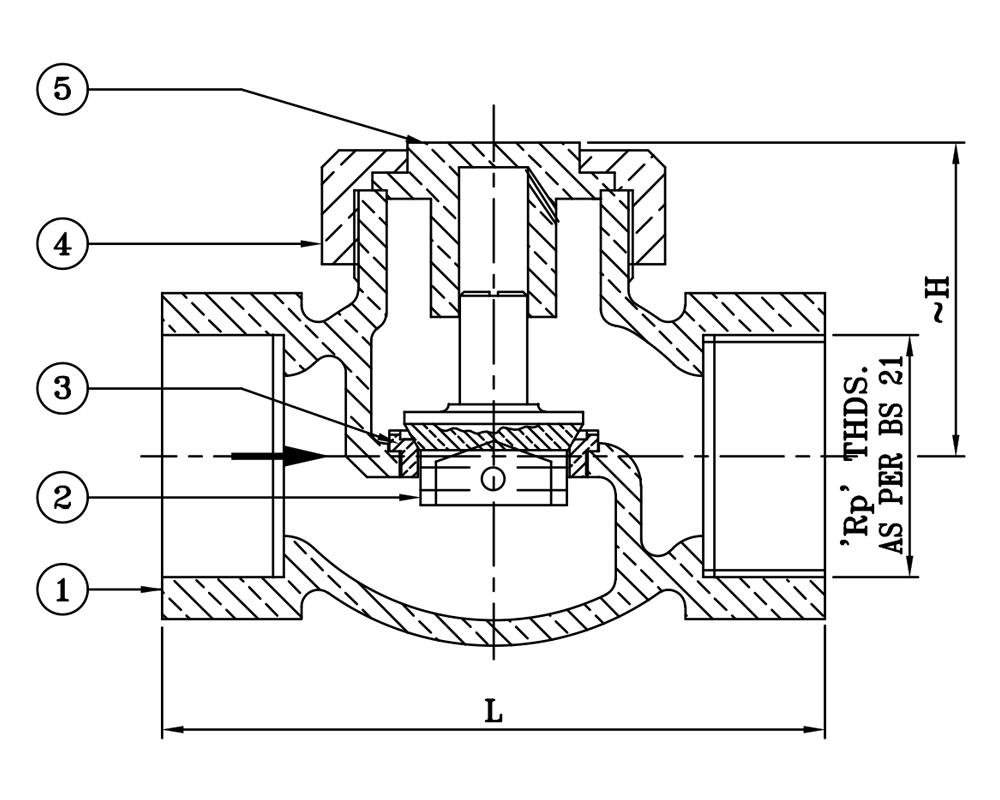

Materials
| P. No. | Name Of Part | Material Of Construction | Qty. |
|---|---|---|---|
| 01 | Body | Forged Brass | 01 |
| 02 | Disc | Forged Brass | 01 |
| 03 | Bonnet | Forged Brass | 01 |
| 04 | ‘O’ Ring | Nitrile Rubber | 01 |
Size
| Code | Size | Size | MRP | Weight | Qty. |
|---|---|---|---|---|---|
| NRVH-01 | 1/2" | 15mm | 300.00 | 105gm | 300 Pcs |
| NRVH-02 | 3/4" | 20mm | 480.00 | 135gm | 140 Pcs |
| NRVH-03 | 1" | 25mm | 570.00 | 205gm | 140 Pcs |
| NRVH-04 | 1.1/4" | 32mm | 1120.00 | 360gm | 50 Pcs |
| NRVH-05 | 1.1/2" | 40mm | 1580.00 | 490gm | 50 Pcs |
| NRVH-06 | 2" | 50mm | 2000.00 | 700gm | 30 Pcs |
Dimensions
| Size | A ± 1.5 | B ~ | C |
|---|---|---|---|
| 1/2" | 52 | 42 | 1/2" |
| 3/4" | 65 | 48 | 3/4" |
| 1" | 82 | 55 | 1" |
| 1.1/4" | 88 | 61 | 1.1/4" |
| 1.1/2" | 98 | 66 | 1.1/2" |
| 2" | 120 | 75 | 2" |
