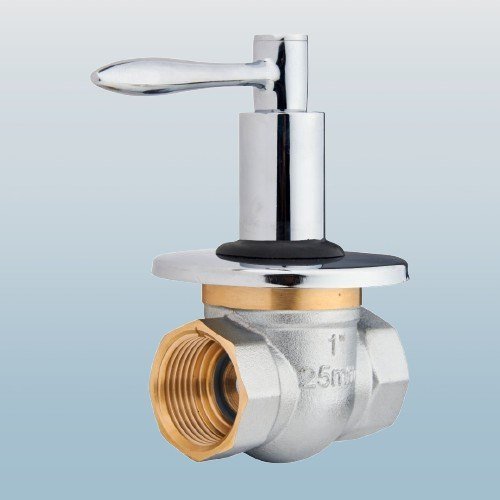

Forged Brass NRV Horizontal
Salient Features
- Screwed Female Ends to IS 554/BS 21/ISO 7.
Full bore, Two Piece Design. - Quarter Turn Lever Operated.
- Provided With Forged Brass Hard Chrome Plated Ball.
- Premium Quality PTFE Gland Packing & Seating.
- Chrome Finish
- Test Pressure (Hydrostatic)
- Shell: 25 Kg/Cm2g (350 psig)
- Seat: 16 Kg/Cm2g (225 psig)
- Maximum Working Temperature: 220 C
Suitable For :
Steam
Water
Oil
Air
Gases

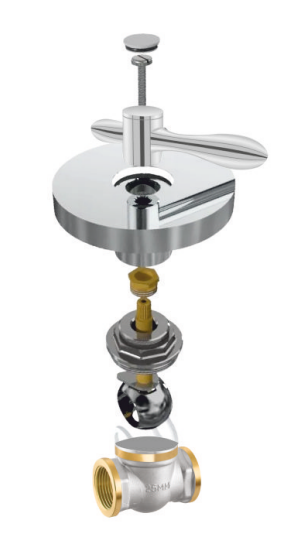

Materials
| P. No. | Name Of Part | Material Of Construction | Qty. |
|---|---|---|---|
| 01 | Body | Forged Brass | 01 |
| 02 | Bonnet | Forged Brass | 01 |
| 03 | Ball | Forged Brass (Hard Chrome Platted) | 01 |
| 04 | Body Seat Ring | PTFE | 02 |
| 05 | Thrust Washer | PTFE | 01 |
| 06 | Steam | Forged Brass | 01 |
| 07 | Gland | Forged Brass | 01 |
| 08 | Lever | Brass | 01 |
Size
| Code | Size | Size | MRP | Weight | Qty. |
|---|---|---|---|---|---|
| CV-01 | 1/2" | 15mm | 1220.00 | 430gm | 50 Pcs |
| CV-02 | 3/4" | 20mm | 1560.00 | 530gm | 50 Pcs |
| CV-03 | 1" | 25mm | 1860.00 | 670gm | 50 Pcs |
| CV-04 | 1.1/2" | 40mm | 3760.00 | 1200gm | 25 Pcs |
